HP-UX Log shutdown abnormally

** Credit Web
1./var/opt/resmon/log/event.log
2./var/adm/syslog/syslog.log
3./var/adm/syslog/OLDsyslog.log
4./var/tombstones/ts99
5.echo "map selall info;wait infolog" | cstm > /tmp/cstm.txt  ----->send/tmp/cstm.txt
6./etc/shutdownlog
7.access MP with control B: MP>SL –> e    (11iV1)

Install Rman Catalog(Oracle9i) with Dataprotector for Backup Oracle Database rman agent [Thai]

** Myself

Install Rman Catalog

มีขั้นตอนดังนี้
1. ทำการ สร้าง database ของ Rman ด้วย dbassistant ของ oracle
Start -> All program->OraHome92->Configuration and migration tools-> Database Configuration Assistant
Welcome
1.1กดถัดไป
Select the operation you want to perform
1.2 เลือก Create a database
1.3 กดถัดไป
Select a template from the following list to create a database
1.4 เลือก New Database
1.5 กดถัดไป
Spectify the following database information.
Global Database Name
1.6 ใส่ OMS
SID
1.7 ใส่ OMS
1.8 กดถัดไป
Database Features
1.9 ไม่เลือก Oracle ultra search
1.10 ไม่เลือก Exam Schemas
1.11 กด Standard database features
1.12 ไม่เลือก Oracle JVM
1.13 ไม่เลือก Oracle TEXT
1.14 ไม่เลือก Oracle XML DB
1.15 กดถัดไป
Select the mode in which you want your database to operate by default
1.16 เลือก Dedicated Server Mode
1.17 กดถัดไป
Memory
1.18 เลือก Typical
1.19 ใส่ 80
1.20 เลือก tab Archive
Archive
1.21 เลือก Archive Log Mode
1.22 กดถัดไป
Database Storage
1.23 ปรับ tablespace และให้ขนาดเริ่มต้น มีค่าดังรูป
1.24 กดถัดไป
Select the following database creation options
1.25 เลือก Create Database
1.26 กดเสร็จสิ้น
Summary
1.27 กด OK
Create database
1.28 รอจบจบการ create db
1.29 กดเสร็จสิ้น
Change Passwords
1.30 ใส่ sys และ system password
1.31 กดexit
1.32 กดเสร็จสิ้น

2.restore และสร้าง tablespace ของ catalog rman
สร้าง tablespace และ user ด้วย sqlplus
เข้า command prompt
2.1กดปุ่ม Start->Run…
2.2 พิมพ์ cmd แล้วกด ok
clip_image001
เข้า sqlplus เป็น sysdba
2.3 สั่ง sqlplus /nolog
2.4 สั่ง connect /@oms
as sysdba
- sqlplus /nolog
- connect /@OMS as sysdba
สร้าง tablespace และ user
2.5 สร้าง tablespace rman_ts
2.6 สร้าง user บน tablespace rman_ts
2.7 ให้สิทธิกับ user
CREATE TABLESPACE RMAN_TS
LOGGING
DATAFILE 'D:\ORACLE\ORADATA\OMS\RMAN_TS.DBF' SIZE 128M EXTENT
MANAGEMENT LOCAL SEGMENT SPACE MANAGEMENT AUTO ;
CREATE USER RMAN_DB PROFILE "DEFAULT"
IDENTIFIED BY RMAN_DB DEFAULT TABLESPACE RMAN_TS
TEMPORARY TABLESPACE TEMP
ACCOUNT UNLOCK;
GRANT UNLIMITED TABLESPACE TO RMAN_DB;
GRANT SYSDBA,DBA,CONNECT,RECOVERY_CATALOG_OWNER,RESOURCE TO RMAN_DB;

Windows Control Panel, Shortcuts and Control.exe


Control Panel Applets
Some of the components of the Control Panel are special system folders but many are determined by a group of files with the extension CPL. Most of these files are in the folder \Windows\System32\; some that are part of application software may be elsewhere. To find which CPL files are on your system, go to Windows Search and search for all files with name *.cpl. The table below lists some of the common CPL files. CPL files can be used to directly access various features of Control Panel by opening them with either Rundll32.exe or Control.exe. By this means, scripts or shortcuts can be written for immediate access to particular functions. Commands using these files can also be entered into the Start-Run line. Note that some CPL files are multi-functional and require additional parameters to invoke the various functions. Parameters use the "@" sign and a zero-based integer. Tabs are denoted by additional indexes (not necessarily zero-based integers). More details are given in the section on shortcuts below.
Table Some Control Panel Applet Files
File
Function
Tabs (number in parentheses is index n discussed below)
access.cpl
Accessibility controls
Keyboard(1), Sound(2), Display(3), Mouse(4), General(5)
appwiz.cpl
Add/Remove Programs

desk.cpl
Display properties
Themes(5), Desktop(0), Screen Saver(1), Appearance (2), Settings(3)
directx.cpl
Direct X Control Panel (If Installed)

findfast.cpl
FindFast

firewall.cpl
Windows Firewall

hdwwiz.cpl
Add hardware

inetcpl.cpl
Configure Internet Explorer and Internet properties
General(0), Security(1), Privacy(2), Content(3), Connections(4), Programs(5), Advanced(6)
intl.cpl
Regional settings
Regional Options(1), Languages(2), Advanced(3)
jpicpl32.cpl
Java Control Panel (If Installed)

joy.cpl
Game controllers

main.cpl
Mouse properties and settings
Buttons(0), Pointers(1), Pointer Options(2), Wheel(3), Hardware(4)
main.cpl,@1 main.cpl keyboard
Keyboard properties
Speed(0), Hardware (1)
mmsys.cpl
Sounds and Audio
Volume(0), Sounds(1), Audio(2), Voice(3), Hardware(4)
netsetup.cpl
Network Setup Wizard

ncpa.cpl
Network properties

nusrmgr.cpl
User accounts

nvtuicpl.cpl
Nview Desktop Manager (If Installed)

odbccp32.cpl
ODBC Data Source Administrator

password.cpl
Password Properties

powercfg.cpl
Power configuration
Power Schemes, Advanced, Hibernate, UPS (Tabs not indexed)
sticpl.cpl
Scanners and Cameras

sysdm.cpl
System properties
General(0), Computer Name(1), Hardware(2), Advanced(3), System Restore(4), Automatic Updates(5), Remote (6)
telephon.cpl
Phone and modem options
Dialing Rules(0), Modems(1), Advanced(2)
timedate.cpl
Date and time properties
Date & Time(0), Time Zone(1), Internet Time (no index)
wuaucpl.cpl
Automatic Updates

wscui.cpl
Security Center




SAP ST11 Displaying Trace File

** Credit http://help.sap.com/saphelp_nw04/helpdata/en/95/5120275a8449ada5fedd2d77f6f6fb/content.htm

Example

List view 4.6/4.7

ALV ECC6

clip_image002

clip_image004

You can display developer traces from within the SAP System and from the operating system level.
Within the SAP System:
Choose transaction ST11. Here, you see all the trace files in the work directory. Double-click on a file to display there. If you want to save a file locally, choose System ® List ® Save ® Local file.
The following trace types have their own transactions.
Component
Transaction
More Information
Work process
SM50
Gateway
SMGW
Message server
SMMS
ICM
SMICM
SAP Web Dispatcher
-
You can also download the trace files onto your local computer. To do this use the ABAP report RSMON000_DOWNLOAD_TRACES. For more information see Downloading Trace Files.

Java EJB Stateless vs. Stateful [Thai]

** Credit http://blog.pokpitch.com/tag/ejb

EJB Stateless vs. Stateful

หลังจากไปพยายามค้นคว้่าหาคำตอบ จากหลายๆเวบที่น่าเชื่อถือว่าการทำงานของ stateless และ stateful ซึ่งเป็น session beans บน EJBs นั้นมันต่างกันยังไง ต้องใช้ในงานแบบไหน วันนี้ก็พบคำตอบที่คิดว่าเข้าใจได้ง่ายที่สุดแล้ว
Stateless Session Bean
stateless นั้น client-session bean จะเรียก instance ของ stateless object ตัวไหนก็ได้ อาจจะเป็นตัวเดิม, ตัวที่สร้างขึ้นมาใหม่, หรือตัวอื่นๆ ที่มีอยู่ในขณะนั้น (make a call on a difference instance of the same object)  เราไปดูตามรูปเลยดีกว่า
clip_image001
รูปด้านบนนี้มี Caller แค่ตัวเดียวโดยจะ request ไปยัง instance ของ stateless session bean ทั้งหมด 3 ครั้ง โดยเราจะสังเกตได้ว่าบน container น้นจะมี instance

Problem SAP Download Manager on Windows 7 & JDK v1.4.X Install completely no errors but run it nothing happens, nothing opens, no messages.

** Credit http://forums.sdn.sap.com
Start
-> SAP Download Manager or Download Manager (old version)
 or   clip_image002

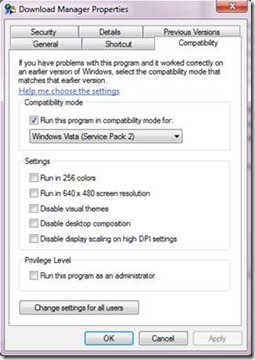

->Right click
  -> Compatibility
    -> Run this program in compatibility mode for: Windows Vista (Service Pack X)
clip_image004

SAP BASIS Trust VB for Generate EWA report on Microsoft Word 2003/2007

** Myself

Generate EWA report

Word 2003
Goto ->
 Tools ->
  Macro ->
   Security ->
    Trusted Publishers
Select on “Trust access to Virtual Basic project”




Word 2007
Word Options ->
 In Pop up select Trust Center ->
  Trust Center settings.
 Select on “Enable all macros and Trust access to VBA project”

SAP AS Java Dispatcher & Administrative Ports

** Credit SAP

AS Java Dispatcher & Administrative Ports
Function
Service Name
Port Number
Default Value
Range (min-max)
SAP NW AS Java (&NWA)
HTTP
5NN00
50000
50000-59900
SAP NW AS Java (&NWA)
HTTP over SSL
5NN01
50001
50001-59901

IIOP
5NN07
50007
50007-59907
IIOP Initial Context
IIOP Initial Context
5NN02
50002
50002-59902
IIOP over SSL
IIOP over SSL
5NN03
50003
50003-59903
JAVA Visual Administrator
P4
5NN04
50004
50004-59904

P4 over HTTP
5NN05
50005
50005-59905

P4 over SSL
5NN06
50006
50006-59906
JAVA Shell Console Administrator
Telnet
5NN08
50008
50008-59908
JMS
JMS
5NN10
50010
50010-59910
SAPMC(sapstartsrv)
Start service HTTP
5NN13
50013
50010-59910
SAPMC(sapstartsrv)
Start service HTTPS
5NN14
50014
50010-59910
SAP SDM
SDM
5NN17
5NN18
5NN19
50017
50018
50019
50010-59910

Set up SAPGUI Single Sign-On (SSO) using Microsoft Kerberos with SAP Window Server

** Myself
Server Information
Host: SERVER1
SID:   DEV
INST NO:   10
Domain: ABC.COM
Configuring the SAP Instance Procedure
...
       1.      Determine which variant of the library is appropriate for your application server platform. See the table below.
Kerberos Wrapper Library According to Platform
Platform
Library 2003/XP
Library 2000
32-bit Windows NT (Intel x86)
gssntlm.dll
gsskrb5.dll
64-bit Windows NT (x86_64)
gx64ntlm.dll
gx64krb5.dll
64-bit Windows NT (ia64/Itanium)
gi64ntlm.dll
gi64krb5.dll
For more information about how to get the library, see SAP Note 352295.

§         Choose gx64ntlm.dll
       2.      Copy the library to the appropriate Windows system directory on the primary application server instance:
       Drive:\%windir%\system32\
       Drive:\%windir%\SysWOW64\
Or
       D:\usr\sap\DEV\DVEBMGS10\exe\

§         Copy gx64ntlm.dll  to D:\usr\sap\DEV\DVEBMGS10\exe\

 3.      In the instance profile of the primary application server instance, set the profile parameters and  allow users to be able to log on to the SAP system using user ID and password.
Rz10-> DEFAULT
§         snc/enable = 1
§         snc/gssapi_lib = D:\usr\sap\DEV\DVEBMGS10\exe\gx64ntlm.dll
§         snc/identity/as = p:ABC.COM\SAPServiceDEV
§         snc/accept_insecure_cpic = 1
§         snc/accept_insecure_gui =1
§         snc/accept_insecure_rfc = 1
§         snc/permit_insecure_start = 1

4.      Stop and restart the SAP system so that the profile parameters take effect.
