UNIX OS HP-UX Restore client from ignite server

**Myself
Step restore client from Ignite server
1. Interrupt boot os
2. Boot ignite tape version ignite from tape = ignite server
-or-
Boot DVD media version ignite from media = ignite server
-or-
Boot lan (same subnet if not config boot-helper)
Bo lan.XX.XX.XX.XX install (XX=ip ignite server)
3. In Install Welcome sceen ,choose Ignite-UX and Advance install
4. Choose Archive file from ignite server
5. Check space ,dump file ,vg and all
6. Go ! to begin installation phase
Screen restore client from Ignite server
Welcome to the HP-UX installation/recovery process!
Use the <tab> key to navigate between fields, and the arrow keys
within fields. Use the <return/enter> key to select an item.
Use the <return/enter> or <space-bar> to pop-up a choices list. If the
menus are not clear, select the "Help" item for more information.
Hardware Summary: System Model: 9000/800/L3000-8x
+---------------------+----------------+-------------------+ [ Scan Again ]
| Disks: 8 (273.6GB) | Floppies: 0 | LAN cards: 5 |
| CD/DVDs: 1 | Tapes: 4 | Memory: 12288Mb |
| Graphics Ports: 0 | IO Buses: 17 | CPUs: 4 | [ H/W Details ]
+---------------------+----------------+-------------------+
[ Install HP-UX ]
[ Run a Recovery Shell ]
[ Advanced Options ]
[ Reboot ] [ Help ]
User Interface and Media Options
This screen lets you pick from options that will determine if an
Ignite-UX server is used, and your user interface preference.
Source Location Options:
[ ] Media only installation
[ ] Media with Network enabled (allows use of SD depots)
[ * ] Ignite-UX server based installation

UNIX OS HP-UX Configuration Ignite server for hpvm host for restore vmguest

**Myself
Ignite server vmhost to vmguest
(vmhost=igserv:ip=10.10.10.10,vmguest=quest1:ip=10.10.10.20)
vmhost
Configure ignite server
mkdir –p /backup/igserv
chown bin:bin /backup/igserv

edit /etc/exports
/var/opt/ignite/clients -anon=2
/backup/igserv -anon=2,access=igserv
/backup/igserv -anon=2,access=Scorpion
exportfs -av
umask 033
make_net_recovery -s igserv -x inc_entire=vg00 -a igserv:/backup/igserv -A
receive mac address from vmguest and config ignite client of vmguest
hpvmstatus -P quest1|grep -i lan
vswitch lan vswitch1 1 0 1 0 62-14-4a-59-0d-b6

Unix OS HP-UX Restore ignite from tape HP-UX 11i(V1)

** Myself
Restore
# interrupt 10 sec to boot tape device
# Choose Advance for change file system (swap,stand,root,..)
# Restore to disk

Post task after complete restore
# Create new mirror
#1.Reduce Secondary disk
vgreduce /dev/vg00 /dev/dsk/${SEC_DISK}
#2. pvcreate the new disk
pvcreate -B /dev/rdsk/${SEC_DISK}
#3. Use mkboot to place boot utilities inthe boot area,the newly created boot disk
mkboot /dev/rdsk/$SEC_DISK
#4. Use mkboot to set quorum into disk
mkboot -a "hpux -lq" /dev/rdsk/$SEC_DISK
mkboot -a "hpux -lq" /dev/rdsk/$PRI_DISK
#5. Extend vg to include new disk
vgextend /dev/vg00 /dev/dsk/${SEC_DISK}
#6. extend lvols to mirror on the disk
for i in /dev/vg00/lv*
do
lvextend -m 1 $i /dev/dsk/${SEC_DISK}
done
#7. Change Boot Path
setboot pri 0/0/…
setboot alt 0/0/…

Unix OS HP-UX Backup ignite to tape HP-UX (V1,2,3)

** Myself
Include file for make_tape_recovery and make_net_recovery
#/opt/ignite/recovery/mnr_essentials
# Backup Command Ignite
nohup make_tap_recovery –Av & (case rmt/0mn with nohup.out for background session)
make_tap_recovery –Av (case rmt/0mn)
make_tap_recovery –a /dev/rmt/Xmn -Av (case Xmn)
make_tap_recovery –a /dev/rmt/Xmn -Av –x exclude=/oracle (case Xmn with exclude data on mount point file system)
# Duplicate tape ignite to tape
dd if=/dev/rmt/0mn of=/dev/rmt/1mn bs=2k
dd if=/dev/rmt/0m of=/dev/rmt/1m bs=10k
# Duplicate tape ignite to disk
dd if=/dev/rmt/0mn of=/dir1 bs=2k
dd if=/dev/rmt/0m of=/dir2 bs=10k

Step by Step Install Windows 2003 on DL/ML HP Machine

1. install windows 2003 standard edition server
Rom boot
1. boot self-test information, memory, CPU, HD
clip_image002
2. Press "Ctrl + S" to enter "HP Ethernet Boot Agent" settings clip_image004
3. It can enter BIOS by F9clip_image006
SmartStart

4. Add CD-ROM drive will SmartStart, and guide;
clip_image008

Assigned Storage iscsi to Linux with NetApp Storage

** Myself
Refer Iscsi for Linux with NetApp
On Linux
Configuration of iscsi /etc/iscsi.conf

DiscoveryAddress= <host of storage>
IncomingUsername=administrator (admin user for admin external storage)
IncomingPassword=password (password admin user for admin external storage)
OutgoingUsername=administrator (admin user for admin external storage)
OutgoingPassword=password (password admin user for admin external storage)

Configuration of iscsi initiator /etc/initiatorname.iscsi
InitiatorName=iqn.1987-05.com.cisco:rhel4
# iqn.1987-05.com.cisco:rhel4 = <identified name by os-generate>:<free name >
list iscsi device
iscsi-ls –l
Iscsi Rescan new device
iscsi-rescan

iscsi id
/var/run/iscsid.pid


SAP BASIS Step Shot approve solman download patch from service.sap.com by function module

** Myself
Step Shot approve solman download patch

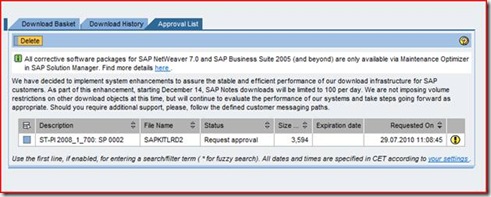

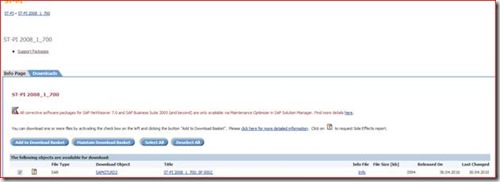

1) Add file to download basket from service.sap.com
clip_image002
clip_image004

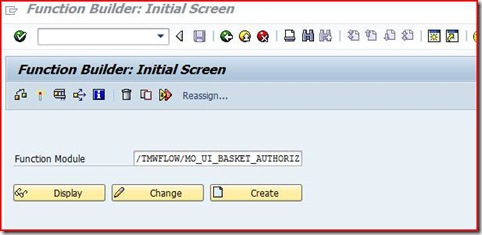

Logon to Solman and run
SE37
/TMWFLOW/MO_UI_BASKET_AUTHORIZ then execute ( F8 )
clip_image006

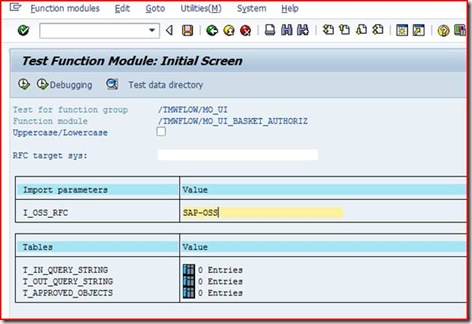

values I_OSS_RFC = SAP-OSS
clip_image008
execute ( F8 )
clip_image010
Select -> confirm download
Go to web basket
clip_image012
Change from approval list to download basket
(Next step direct download or use sapdownload manager tool)
clip_image014

SAP BASIS Install SAP 4.7 Enterprise on Windows 2000 with MS SQL Server 2000

** Myself
Set windows 2000 server
  • SET Virtual Memory
CLICK Advanced--> Performance option --> Change
clip_image002[4]
update windows patch
clip_image003[4]
install jdk 1.4
install-->j2sdk-1.4.2.06-windows-i586-p.exe
clip_image004[4]
clip_image005[4]
clip_image006[4]
clip_image007[4]
  • SET ENVIRONMENT VARIABLE
CLICK NEW
VARIABLE NAME : JAVA-HOME
VALUE :PATH OF JDK1.4….
EDIT PATH, ADD THE PATH NAME AT THE END OF VALUE SEPARATED BY ;

How to View/Disconnect Remote Desktop Sessions from Command

** Myself with web

How to View/Disconnect Remote Desktop Sessions from Command

Sol1)

I used to receive the maximum number of connections error message when I try to log on to the Windows 2003 Server in my office via Windows Remote Desktop.
The terminal server has exceeded the maximum number of allowed connections
clip_image001
This is pretty annoying if you have some urgent work to do in the server. Most of the already logged in users won’t even be using the session at the time, but I can’t login! So how to solve this? After a bit of googling, as usual, I found a simple way to disconnect other remotely logged in sessions. clip_image002

Pre-Step

Netbackup MS SQL backup Client hold (parent killed) and can’t new backup. (spawn Application-Backup jobs after the parent job was canceled by the administrator) NBU 6.5.3

** Myself

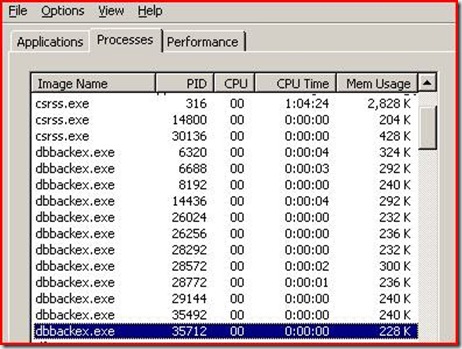

From Task manager
dbbackex.exe (child process from bp process of netbackup)
clip_image002
clip_image004

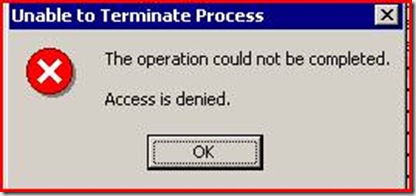

Cant’ killed
clip_image006

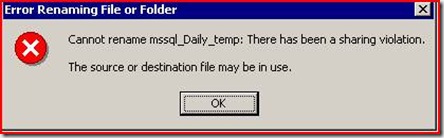

Can’t change template backup file

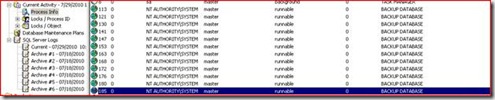

From Enterprise Manager See SQL process mapping one to one with Netbackup child process.
clip_image008
Select process -> kill process
Refresh view
clip_image002[5]

How to use the "kill" command in Windows 2000 and "taskkill" command in Windows 2003

** Credit symantac http://seer.entsupport.symantec.com/docs/253904.htm and
window support http://support.microsoft.com/default.aspx?scid=kb;en-us;197155&Product=win2000

To use the kill command to stop the Backup Exec services, do the following:
1. Click Start | Run, and then type cmd and press <Enter>

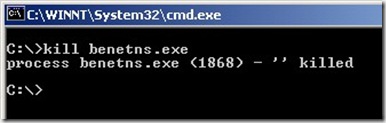

2. At the command prompt, type kill benetns.exe. This will stop the Backup Exec Agent browser service (Figure 3).
Figure 3
clip_image001
kill process name or id
-or-
kill -f process name or id




###Example force kill for Backexec process hold dbbackex.exe (Killed on master server but client can’t terminate)
kill -f benetns.exe or kill –f 1868

###Example force kill for netbackup process hold dbbackex.exe (Killed on master server but client can’t terminate)
kill -f dbbackex.exe


3. Repeat steps 2 and 3 for each of the Backup Exec services. The process name will be different for each service. The easiest way to find out their names is to look at the Path to Executable field in the properties of each service. After all Backup Exec services are stopped, they can be restarted to continue using or troubleshooting Backup Exec.
Windows 2003
In Windows 2003,  use the taskkill command to stop the Backup Exec services. Do the

Sun Solaris OS Image Procedure

** Credit Web

Restore Procedure

1. Insert the Solaris 10 Software DVD, and boot the DVD with the single-user mode option.
ok boot cdrom -s
2. Create the new file system structure.
# newfs /dev/rdsk/c0t0d0s0
3. Mount the file system to the mount point /a and change to that directory.
# mount /dev/dsk/c0t0d0s0 /a
# cd /a
4. Restore dump file on Dataprotector to dummy server (PDS system) for using this server to restore dump file via NFS service
5. Setup interface server to connect dummy server and verify connection
# ifconfig bge0 IP address netmask broadcast up
# ping dummy server
6. Mount the NFS file system from dummy server that located dump file for recovery system
# mount dummy server:/dump file location /a/b
7. Restore the / (root) file system from NFS service.
# cd /a
# ufsrestore rf /a/b/root.dmp .
8. Remove the restoresymtable file.
# rm restoresymtable
9. Install the bootblk in Sectors 1 through 15 of the boot disk. To do this, change to the directory that contains the bootblk, and enter the installboot command.
# cd /usr/platform/`uname -m`/lib/fs/ufs
# installboot bootblk /dev/rdsk/c0t0d0s0
10. Unmount the new file system.
# cd /
# umount /a
11. Use the fsck command to check the restored file system.
# fsck –y /dev/rdsk/c0t0d0s0
12. Perform a full backup of the file system.
# ufsdump 0uf /dev/rmt/0 /dev/rdsk/c0t0d0s0
13. Reboot the system.
# init 6

Oracle Database Basic Command

** Credit Web
Alter
Application:
Altering a users password, making changes to a table or column.
Change Password:
ALTER user username IDENTIFIED BY newpassword
Example
ALTER USER tony IDENTIFIED BY cereal


Adding a column:
ALTER TABLE tablename ADD column name datatype
Example:
ALTER TABLE project ADD names varchar2(25)


Application:
Commit data to a database table.
Save inserted data
Commit


Application:
Allows for the creation of column constraints such as Primary and Foreign keys.
Create Primary Key
CONSTRAINT constraint name_pk PRIMARY KEY
Example
CONSTRAINT cd_cd_id_pk PRIMARY KEY (cd_id)

{NOTE: this is the format when using at the end of you column declarations in a CREATE Table statement)


Create a Foreign Key
CONSTRAINT constraint name_fk REFERENCES tablename(primary key)
Example
CONSTRAINT cd_cd_id_fk REFERENCES cd(cd_id)

{NOTE: this is the format when using at the end of you column declarations in a CREATE Table statement)


ADD a PRIMARY Key Constraint (after table created)
ALTER TABLE tablename

ADD CONSTRAINT constraint name PRIMARY KEY (column name)
Example
ALTER TABLE cd

ADD CONSTRAINT cd_cd_id_pk PRIMARY KEY(cd_id);


Add a FOREIGN KEY Constraint (after table created)
ALTER TABLE tablename

ADD CONSTRAINT constraint name REFERENCES table(column name)
Example
ALTER TABLE cd

ADD CONSTRAINT cd_cd_id_fk REFERENCES cd(cd_id);




Application:
Creates a table,view, index, sequence, user etc. in the database.
Create Table
CREATE TABLE tablename (data definition)
Example:
CREATE TABLE project ( name varchar2(25), activity varchar2(30))


Create View
CREATE VIEW viewname (column names)AS SELECT select statement
Example:
CREATE VIEW report (Names, Addresses) AS SELECT Select name, address FROM book

Application:
Delete a record from a table.
Delete record
DELETE FROM tablename WHERE search condition
Example:
DELETE FROM project WHERE projid = 21

Oracle Database Renaming a table syntax

** Myself
Oracle Renaming a table syntax
ALTER TABLE table_name
RENAME TO new_table_name;
For example,
ALTER TABLE table1
RENAME TO table2;

DB2 Database Step by Step Installation and Manage DB2 Instance on AIX [Thai Version]

** Credit K.Vitaya Lorsrichandr
ขั้นตอนการติดตั้งระบบฐานข้อมูล DB2 UDB ESE หรือ WSE บน AIX
1   ตรวจสอบสิ่งที่จำเป็นต้องทำเป็นเบื้องต้น ( Prerequisites )
2   การ Mount แผ่น DB2 Installation CD-ROM
3   ติดตั้งระบบฐานข้อมูล DB2 UDB Enterprise Server Edition หรือ Workgroup
     Server  Edition
4   ติดตั้ง  FixPak  ล่าสุด
5   ตรวจสอบการติดตั้งระบบฐานข้อมูล โดยใช้ Command Line Processor (CLP)
6   (ทางเลือก) ติดตั้ง DB2 Information Center

1   ตรวจสอบสิ่งที่จำเป็นต้องทำเป็นเบื้องต้น ( Prerequisites )
            1.1  ระบบปฏิบัติการ
                   DB2 UDB Workgroup Server Edition ทำงานได้บนระบบปฏิบัติการดังนี้
                   -  AIX Version 4.3.3 (32-bit only) with Maintenance Level 11
                       For JFS filesystems:
                                    APAR  IY49385
                       For Java:
                                    OpenGL.OpenGL_X.rte.base
                                    OpenGL.OpenGL_X.rte.soft
                                    X11.adt.lib

                   -  AIX Version 5.1.0 (32-bit และ 64-bit) with Maintenance Level 5
                       For JFS filesystems:
                                    APAR  IY48735
                       For JFS2 filesystems:
                                    APAR  IY49254
                      For Java:
                                    Recommend Maintenance Package AIX5100-04 และ APAR IY46667


SAP BASIS Installation Disk,CPU,RAM Requirement for Windows

** Credit http://forums.sdn.sap.com and Sapnote
IDESR3

SAP 4.7 IDES

SAP 4.7
Processor --- Intel P4 2.0 or aboveProcessor --- Intel P4 2.4 or above
RAM --- 512 MBRAM --- 512 MB
Hard Disk --- 80 GBHard Disk --- 50 GB

ECC5 IDES

ECC 5.0
Processor --- Intel P4 2.4 or aboveProcessor --- Intel P4 2.4 or above
RAM --- 2 GBRAM --- 1 GB
Hard Disk --- 160 GBHard Disk --- 60 GB

ECC6 (64 bit) IDES

ECC 6.0 (64 bit)
Processor --- Intel P4 3.0 dual coreProcessor --- Intel P4 3.0 dual core
RAM --- 3 GBRAM --- 3 GB
Hard Disk --- 200 GBHard Disk --- 250 GB

DB sizes are IDES ECC6:
ORACLE: 200 GB
MaxDB: 180 GB
MSSQL: 150 GB
DB2-UDB 150 GB
DB2 on iSeries 240 GB

Unix OS HP-UX Mount CD/DVD-ROM for special character (example ORACLE CD) by pfs_mount


** Credit web
Mounting CD-ROMs for HP
1. Use the following command to determine the device_file:
$ ioscan -fun -C disk
The output should be similar to the following:
disk 10 10/12/5.2.0 sdisk CLAIMED DEVICE TOSHIBA CD-ROM
XM-5701TA /dev/dsk/c4t2d0 /dev/rdsk/c4t2d0

2. If there is not already an entry in the /etc/pfs_fstab file for your CD-ROM
device, you must add one. As the root user, use a system editor to add a line to
the /etc/pfs_fstab file following this format:
device_file mount_point filesystem_type translation_method
In the preceding format, the first entry is the CD-ROM device, the second entry
is the mount point, and the third entry indicates that the CD-ROM to be
mounted is in ISO9660 format with Rockridge extensions.
The device_file in this example is /etc/pfs_fstab. For a CD-ROM
device with the path /etc/pfs_fstab, you would enter the following:
/dev/dsk/c4t2d0 /SD_CDROM pfs-rrip xlat=unix 1 0
#Caution: Do not run the Installer while the CD-ROM
directory is the current directory or you will be unable to
unmount the next CD-ROM when prompted to do so.
Installation Mount Options


3. Enter the following commands:
# nohup /usr/sbin/pfs_mountd &
# nohup /usr/sbin/pfsd &

4. Place CD-ROM in the CD-ROM drive and mount the CD-ROM
by entering the following command:
# /usr/sbin/pfs_mount /SD_CDROM

# To unmount the CD-ROM, use the following command:
# /usr/sbin/pfs_umount /SD_CDROM

SAP BASIS How to clear shared memory of saposcol,sapccmsr(Normal procedure not clear) on Unix In case of can’t start or not attatched

** Myself
Command for show shared memory segment
ipcs -ma
Command for remove shared memory segment
ipcrm –m  <memory ID>


Key of share memory for saposcol,sapccmsr
Service Key share memory
saposcol 4dbe
sapccmsr  4dc4

Example for show/remove shared memory segment of saposcol
ipcs -ma|grep 4dbe
m 36901 0x00004dbe --rw-rw-rw- root sapsys root sapsys 1 20141728 2455 12342 19:11:12 19:11:12 18:01:14
ipcrm –m 36901

Example for show/remove shared memory segment of sapccmsr
ipcs -ma|grep 4dc4
m 36860 0x00004dc4 --rw-rw---- j2eeadmin sapsys j2eeadmin sapsys 2 20141728 3856 14332 19:19:32 19:19:32 18:09:34
ipcrm –m 36860


##Can be start again after finish or check by ipcs -ma again

Oracle Database How to Determine DBID


** Credit Web and Me
1) By Rman
rman TARGET /
Recovery Manager: Release 10.2.0.4.0 - Production on Sun Jun 12 02:41:03 2005
Copyright (c) 1982, 2005, Oracle.  All rights reserved.
connected to target database: RDBMS (DBID=774627068)
RMAN>

2) By Query
SELECT dbid, name FROM v$database
          DBID    NAME
----------   ---------
774627068  DEV

3) By Auto Backup Controlfile
c-IIIIIIIIII-YYYYMMDD-QQ
c-774627068-20091230-22


Determining your DBID
In situations requiring the recovery of your SPFILE or control file from autobackup, such as disaster recovery when you have lost all database files, you will need to use your DBID. Your DBID should be recorded along with other basic information about your database, as recommended in "Deciding Between ARCHIVELOG and NOARCHIVELOG Mode".
If you do not have a record of the DBID of your database, there are two places you can find it without opening your database.
Loading
