Backup Step By Step Oracle Backup on Netbackup

** Myself
Step By Step Oracle Backup on Netbackup
1.find หา tnsname.ora
2.vi tnsname.ora ใส่ rmancatalog ไว้ ที่ท้าย file
RMANCAT =
(DESCRIPTION =
(ADDRESS_LIST =
(ADDRESS = (PROTOCOL = TCP)(HOST = backserv)(PORT = 1521))
)
(CONNECT_DATA =
(SERVICE_NAME = rmancat)
)
)
3.tnsping rmancat
4.
TNS Ping Utility for IBM/AIX RISC System/6000: Version 9.2.0.6.0 - Production on 17-NOV-2008 14:20:00
Copyright (c) 1997 Oracle Corporation. All rights reserved.
Used parameter files:
Used TNSNAMES adapter to resolve the alias
Attempting to contact (DESCRIPTION = (ADDRESS_LIST = (ADDRESS = (PROTOCOL = TCP)(HOST = backserv)(PORT = 1521))) (CONNECT_DATA = (SERVICE_NAME = rmancat)))
OK (170 msec)
5.su – oracle
6. rman target sys/”Password” rcvcat rman_db/rman_db@rmancat
7. RMAN>register database;

8.jbpSA &

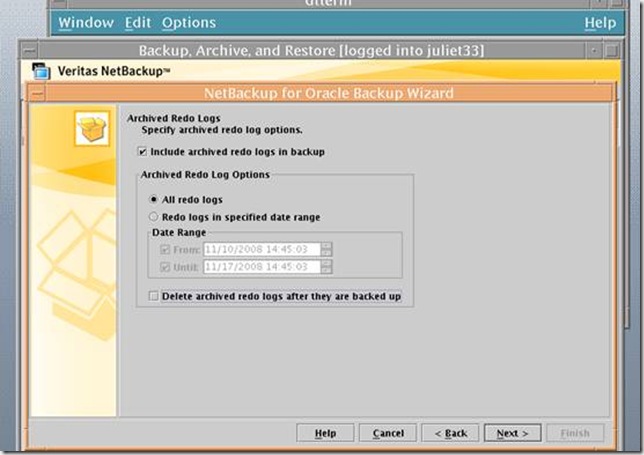

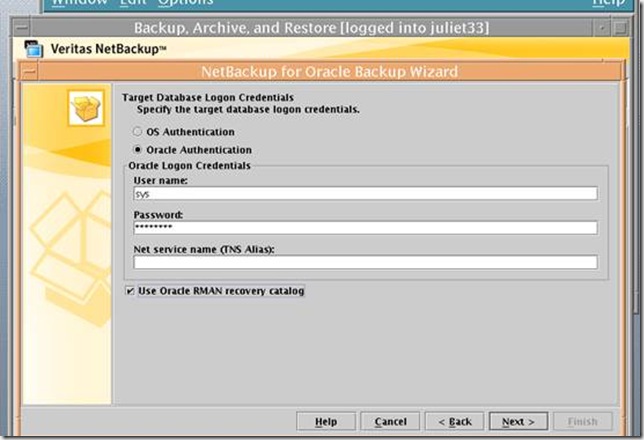

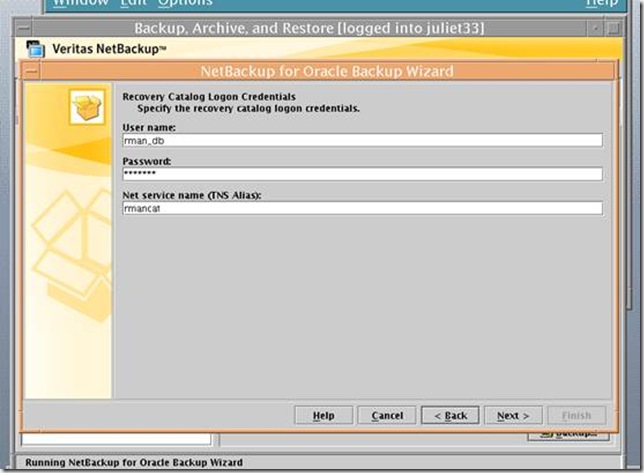

9. clip_image002
10. clip_image004
11. clip_image006
12.clip_image008
13.
clip_image010
14. clip_image012
15
clip_image014
16. จากนั้น ก็ ใส่ Template ที่ต้องการ Gen script จาก master
17. cd /usr/openv/netbackup/bin/
18. /bpdbsbora -backup -g /usr/openv/netbackup/ext/db_ext/oracle/hot_ORCL_arc_1.sh -t ORCL_test.tpl
19. script จะอยู่ ใน file /usr/openv/netbackup/ext/db_ext/oracle/hot_ORCL_arc_1.sh
20.จะเป็น Backup แบบ cold backup ของ Oracle หรือ ท่า Database ตัวอื่นก็คือ FULL Backup
21. เข้าไปแก้ script
#!/bin/sh
# -----------------------------------------------------------------
# Backup script generated on 11/14/08 19:22:38
# Shell Script name: /usr/openv/netbackup/ext/db_ext/oracle/hot_ORCL_juliet33.sh
#
# Veritas NetBackup for oracle on UNIX
# $VRTScprght: Copyright 1993 - 2007 Symantec Corporation, All Rights Reserved $
# -----------------------------------------------------------------
RMAN_LOG_FILE=/tmp/rman1052732.log
# -----------------------------------------------------------------
# Initialize the log file.
# -----------------------------------------------------------------
> $RMAN_LOG_FILE
chmod 666 $RMAN_LOG_FILE
# -----------------------------------------------------------------
# Log the start of this script.
# -----------------------------------------------------------------
echo Script $0 >> $RMAN_LOG_FILE
echo ==== started on `date` ==== >> $RMAN_LOG_FILE
echo >> $RMAN_LOG_FILE
ORACLE_HOME=/app/oracle/product/9.2.0
ORACLE_SID=ORCL
TARGET_CONNECT_STR=sys/abc_1234
CATALOG_CONNECT_STR=rman_db/rman_db@rmancat
RUN_AS_USER=oracle
RMAN=$ORACLE_HOME/bin/rman
CUSER=`id | cut -d"(" -f2 | cut -d ")" -f1`
# -----------------------------------------------------------------
# The NetBackup script generator determined that a NetBackup Policy
# configured for the standard Oracle backup would have been used
# when this script was generated.
# This script was generated for use with a Policy with the standard
# Oracle backup method (i.e. non-proxy).
# -----------------------------------------------------------------
# -----------------------------------------------------------------
# For NetBackup scheduled, or server initiated backups, NetBackup
# sets an NB_ORA environment variable based on the schedule type.
# The NB_ORA variable is then used to dynamically set BACKUP_TYPE.
# For example, when:
if [ "$NB_ORA_FULL" = "1" ]
then
BACKUP_TYPE="INCREMENTAL LEVEL=0"
elif [ "$NB_ORA_INCR" = "1" ]
then
BACKUP_TYPE="INCREMENTAL LEVEL=1"
elif [ "$NB_ORA_CINC" = "1" ]
then
BACKUP_TYPE="INCREMENTAL LEVEL=1 CUMULATIVE"
elif [ "$BACKUP_TYPE" = "" ]
then
BACKUP_TYPE="INCREMENTAL LEVEL=0"
fi
# -----------------------------------------------------------------
# rman commands for database ORCL.
# -----------------------------------------------------------------
CMD="
ORACLE_HOME=/app/oracle/product/9.2.0
export ORACLE_HOME
ORACLE_SID=ORCL
export ORACLE_SID
$RMAN target $TARGET_CONNECT_STR rcvcat $CATALOG_CONNECT_STR msglog $RMAN_LOG_FILE append <<EOF
# -----------------------------------------------------------------
# RMAN command section
# -----------------------------------------------------------------
RUN {
ALLOCATE CHANNEL ch00
TYPE 'SBT_TAPE';
ALLOCATE CHANNEL ch01
TYPE 'SBT_TAPE';
ALLOCATE CHANNEL ch02
TYPE 'SBT_TAPE';
ALLOCATE CHANNEL ch03
TYPE 'SBT_TAPE';
SEND 'NB_ORA_CLIENT=juliet33,NB_ORA_POLICY=K_juliet33_ORACLE_DB_Daily,NB_ORA_SERV=cobalt2';
BACKUP
$BACKUP_TYPE
FORMAT 'bk_u%u_s%s_p%p_t%t'
DATABASE;
RELEASE CHANNEL ch00;
RELEASE CHANNEL ch01;
RELEASE CHANNEL ch02;
RELEASE CHANNEL ch03;
# Backup Archived Logs
# For an offline backup, remove the following sql statement
sql 'alter system archive log current';
ALLOCATE CHANNEL ch00
TYPE 'SBT_TAPE';
ALLOCATE CHANNEL ch01
TYPE 'SBT_TAPE';
ALLOCATE CHANNEL ch02
TYPE 'SBT_TAPE';
ALLOCATE CHANNEL ch03
TYPE 'SBT_TAPE';
SEND 'NB_ORA_CLIENT=juliet33,NB_ORA_POLICY=K_juliet33_ORACLE_DB_Daily,NB_ORA_SERV=cobalt2';
BACKUP
FORMAT 'arch_u%u_s%s_p%p_t%t'
ARCHIVELOG
ALL;
RELEASE CHANNEL ch00;
RELEASE CHANNEL ch01;
RELEASE CHANNEL ch02;
RELEASE CHANNEL ch03;
# Control file backup
ALLOCATE CHANNEL ch00
TYPE 'SBT_TAPE';
SEND 'NB_ORA_CLIENT=juliet33,NB_ORA_POLICY=K_juliet33_ORACLE_DB_Daily,NB_ORA_SERV=cobalt2';
BACKUP
FORMAT 'ctrl_u%u_s%s_p%p_t%t'
CURRENT CONTROLFILE;
RELEASE CHANNEL ch00;
}
EOF
"
if [ "$CUSER" = "root" ]
then
su - $RUN_AS_USER -c "$CMD" >> $RMAN_LOG_FILE
RSTAT=$?
else
sh -c "$CMD" >> $RMAN_LOG_FILE
RSTAT=$?
if [ "$RSTAT" = "0" ]
then
LOGMSG="ended successfully"
else
LOGMSG="ended in error"
fi
# -----------------------------------------------------------------
# Log the completion of this script.
# -----------------------------------------------------------------
echo >> $RMAN_LOG_FILE
echo Script $0 >> $RMAN_LOG_FILE
echo ==== $LOGMSG on `date` ==== >> $RMAN_LOG_FILE
exit $RSTAT
21.ท่าจะทำเป็นแบบ Hotbackup หรือ archivelog ก็เข้าไปแก้ script
#!/bin/sh
# -----------------------------------------------------------------
# Backup script generated on 11/14/08 19:22:38
# Shell Script name: /usr/openv/netbackup/ext/db_ext/oracle/hot_ORCL_juliet33.sh
#
# Veritas NetBackup for oracle on UNIX
# $VRTScprght: Copyright 1993 - 2007 Symantec Corporation, All Rights Reserved $
# -----------------------------------------------------------------
RMAN_LOG_FILE=/tmp/rman1052732.log
# -----------------------------------------------------------------
# Initialize the log file.
# -----------------------------------------------------------------
> $RMAN_LOG_FILE
chmod 666 $RMAN_LOG_FILE
# -----------------------------------------------------------------
# Log the start of this script.
# -----------------------------------------------------------------
echo Script $0 >> $RMAN_LOG_FILE
echo ==== started on `date` ==== >> $RMAN_LOG_FILE
echo >> $RMAN_LOG_FILE
ORACLE_HOME=/app/oracle/product/9.2.0
ORACLE_SID=ORCL
TARGET_CONNECT_STR=sys/abc_1234
CATALOG_CONNECT_STR=rman_db/rman_db@rmancat
RUN_AS_USER=oracle
RMAN=$ORACLE_HOME/bin/rman
CUSER=`id | cut -d"(" -f2 | cut -d ")" -f1`
# -----------------------------------------------------------------
# The NetBackup script generator determined that a NetBackup Policy
# configured for the standard Oracle backup would have been used
# when this script was generated.
# This script was generated for use with a Policy with the standard
# Oracle backup method (i.e. non-proxy).
# -----------------------------------------------------------------
# -----------------------------------------------------------------
# For NetBackup scheduled, or server initiated backups, NetBackup
# sets an NB_ORA environment variable based on the schedule type.
# The NB_ORA variable is then used to dynamically set BACKUP_TYPE.
# For example, when:
if [ "$NB_ORA_FULL" = "1" ]
then
BACKUP_TYPE="INCREMENTAL LEVEL=0"
elif [ "$NB_ORA_INCR" = "1" ]
then
BACKUP_TYPE="INCREMENTAL LEVEL=1"
elif [ "$NB_ORA_CINC" = "1" ]
then
BACKUP_TYPE="INCREMENTAL LEVEL=1 CUMULATIVE"
elif [ "$BACKUP_TYPE" = "" ]
then
BACKUP_TYPE="INCREMENTAL LEVEL=0"
fi
# -----------------------------------------------------------------
# rman commands for database ORCL.
# -----------------------------------------------------------------
CMD="
ORACLE_HOME=/app/oracle/product/9.2.0
export ORACLE_HOME
ORACLE_SID=ORCL
export ORACLE_SID
$RMAN target $TARGET_CONNECT_STR rcvcat $CATALOG_CONNECT_STR msglog $RMAN_LOG_FILE append <<EOF
# -----------------------------------------------------------------
# RMAN command section
# -----------------------------------------------------------------
# Backup Archived Logs
# For an offline backup, remove the following sql statement
sql 'alter system archive log current';
ALLOCATE CHANNEL ch00
TYPE 'SBT_TAPE';
ALLOCATE CHANNEL ch01
TYPE 'SBT_TAPE';
ALLOCATE CHANNEL ch02
TYPE 'SBT_TAPE';
ALLOCATE CHANNEL ch03
TYPE 'SBT_TAPE';
SEND 'NB_ORA_CLIENT=juliet33,NB_ORA_POLICY=K_juliet33_ORACLE_DB_Daily,NB_ORA_SERV=cobalt2';
BACKUP
FORMAT 'arch_u%u_s%s_p%p_t%t'
ARCHIVELOG
ALL DELETE INPUT;
RELEASE CHANNEL ch00;
RELEASE CHANNEL ch01;
RELEASE CHANNEL ch02;
RELEASE CHANNEL ch03;
# Control file backup
ALLOCATE CHANNEL ch00
TYPE 'SBT_TAPE';
SEND 'NB_ORA_CLIENT=juliet33,NB_ORA_POLICY=K_juliet33_ORACLE_DB_Daily,NB_ORA_SERV=cobalt2';
BACKUP
FORMAT 'ctrl_u%u_s%s_p%p_t%t'
CURRENT CONTROLFILE;
RELEASE CHANNEL ch00;
}
EOF
"
if [ "$CUSER" = "root" ]
then
su - $RUN_AS_USER -c "$CMD" >> $RMAN_LOG_FILE
RSTAT=$?
else
sh -c "$CMD" >> $RMAN_LOG_FILE
RSTAT=$?
if [ "$RSTAT" = "0" ]
then
LOGMSG="ended successfully"
else
LOGMSG="ended in error"
fi
# -----------------------------------------------------------------
# Log the completion of this script.
# -----------------------------------------------------------------
echo >> $RMAN_LOG_FILE
echo Script $0 >> $RMAN_LOG_FILE
echo ==== $LOGMSG on `date` ==== >> $RMAN_LOG_FILE
exit $RSTAT
22. ลอง Run Script ดู ท่าเกิด Error Status 6
23. ไป Run cross check ใน Rman
24. su – oracle
24.rman target sys/”Password” rcvcat rman_db/rman_db@rmancat
25.RMAN>crosscheck archivelog all;
